Box-design hood: performance and matching kitchen design bundled in one hood.
- Especially silent: maximal extractor performance with minimal noise
- TouchSelect control: quick touch-control selection of desired settings and light.
- LED-Illumination: The energy-saving lighting provides white and good lighting for the hob area.
- Intensive speed setting: removes strong kitchen odours especially quickly and effectively.
- With exhaust, the air is cleaned by a grease filter and then ducted to the outside which ensures optimal kitchen air quality.
Design:
- 90 cm Chimney hood
- Wall mounted hood
- Box design
- Appliance colour: brushed steel
- 3 capture areas: front side and bottom side
Environment and safety:
- Energy Efficiency Class: B*
- Average Energy Consumption: 48.5 kWh/year*
- Blower Efficiency Class: A*
- Lighting Efficiency Class: A*
- Grease Filtering Efficiency Class: C*
Operating and power:
- 3 speeds plus intensive setting
- Automatic revert setting, 6 minutes
- Max. extraction rate: 604 m3/h
Power:
- Power rating: 220 W
- Twin channel high performance fan motor
- Capacitor energy efficient
- 2 x 1,5W LED
- Light Intensity: 214 lux
- Colour Temperature: 3500 K

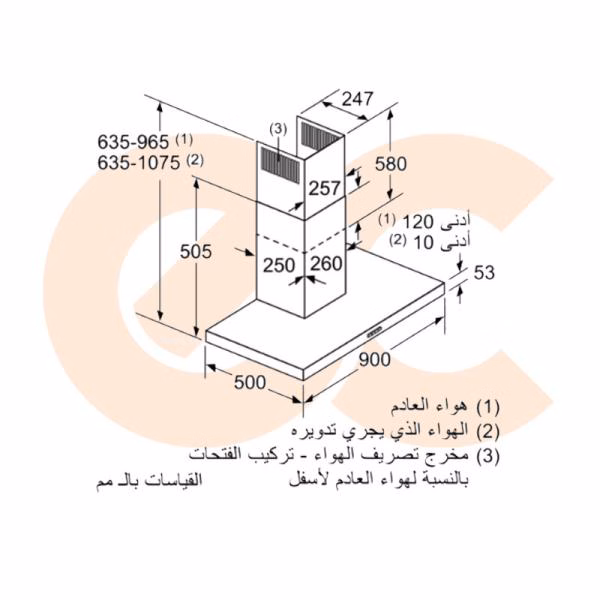

Measures:
- 90 cm wide
- Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
- Dimensions exhaust air (HxWxD): 635-965 MM x 900 x 500 mm
- Dimensions recirculating (HxWxD): 635-1075 MM x 900 x 500 mm
- Dimensions recirculating with CleanAir module (HxWxD):
703 x 900 x 500 mm – mounting with outer chimney
833-1163 x 900 x 500 mm – mounting with telescopic chimney - Dimensions recirculating with CleanAir module (HxWxD):
703 x 900 x 500 mm – mounting with outer chimney
833-1163 x 900 x 500 mm – mounting with telescopic chimney - Dimensions recirculating with CleanAir module (HxWxD);
703 x 900 x 500 mm – mounting with outer chimney
833-1163 x 900 x 500 mm – mounting with telescopic chimney
Technical information:
- Voltage: 220 – 240 V
- Electrical cable length 1.3 m
- Noise min./max. Normal Level: 48/60 dB*
- Suitable for ducted or re-circulated extraction
- For recirculated extraction recirculating kit or CleanAir recirculating kit (accessory) needed
- Extraction rate according to EN 61591 ø 15 cm:
max. Normal use 372 m³/h
Intensive 604 m³/h - Metal grease filter, dishwasher safe
- Extraction rate exhaust air according to EN 61591:
max. normal use 372 m³/h, intensive 604 m³/h - Noise level according to EN 60704-3 und EN 60704-2-13 at max. normal use exhaust air: 60 dB(A) re 1 pW (47 dB(A) re 20 µPa sound pressure)
- Noise level according to EN 60704-3 und EN 60704-2-13 exhaust air:
Max. normal use: 60 dB(A) re 1 pW (47 dB(A) re 20 µPa sound pressure)
Intensive: 70 dB(A) re 1 pW (57 dB(A) re 20 µPa sound pressure)
